P1.8 Indoor fixed installation LED cabinet 16:9 MA Series all-round cooling system
Description:
The indoor fixed LED display is such a display that it is immovable, fastened. And it fixed at a particular place in such a position that it cannot move on its own. These LED displays are also a great source of advertisement using indoor as well as outdoor applications. In the article, we will discuss how an indoor fixed LED display benefits you thoroughly. These LED displays are usually made up of individual panels that impact a brighter display. Moreover, these LED panels are a form of lighting used for basic illumination and various fulguration tasks.
Quick Detail:
· 16:9 Standard Format design
· Supports multi-directional adjustment
· All-round cooling system
· Super wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MA1.8 |
| Pixel Pitch (mm) | 1.86 |
| Pixel Density (pixels/sqm) | 288,906 |
| Module Resolution | 172×96 |
| Cabinet Resolution | 344×192 |
| Mask | No |
| Lamp Type | SMD1515 |
| Cabinet Size (mm) | 640×360×55 |
| Cabinet Weight (kg) | 7.10±0.05 |
| Brightness (cd/sqm) | 650 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP65 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate (Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤370,Ave:≤125 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Remark: Above data is subject to change without previous notice
Details about the product:
Applications:

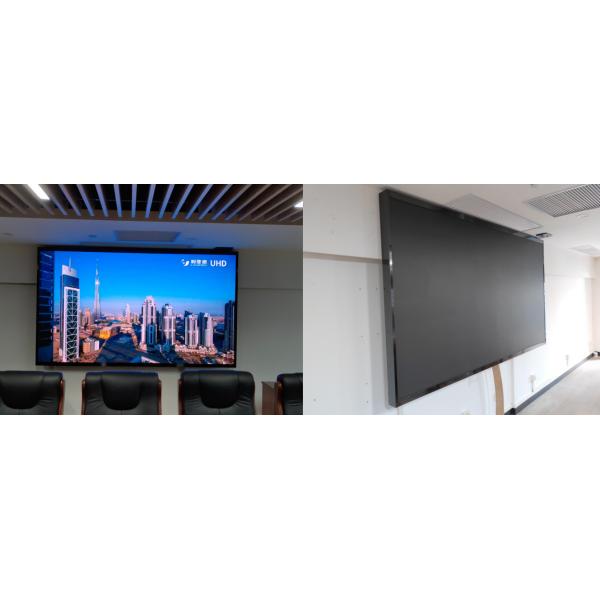

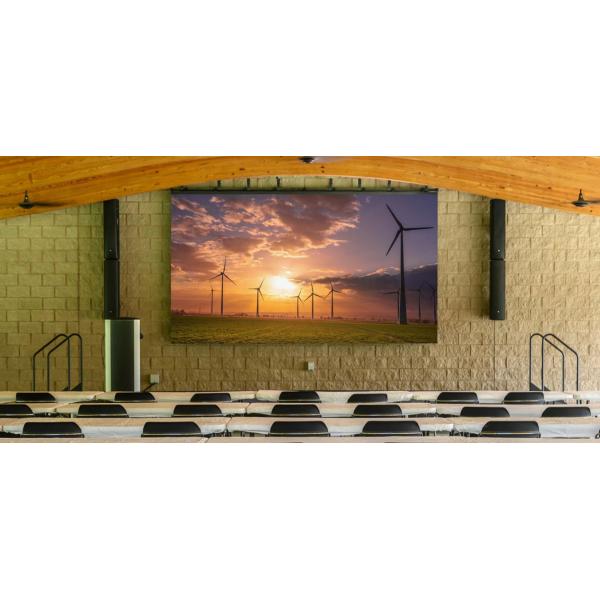

Widely used in high-end conferences, controlling centers, data centers, etc.
